Railco

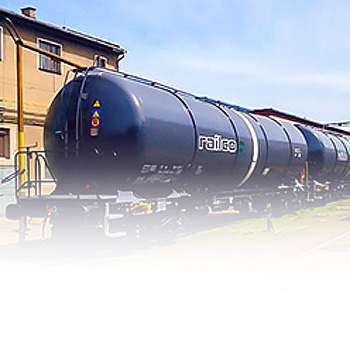

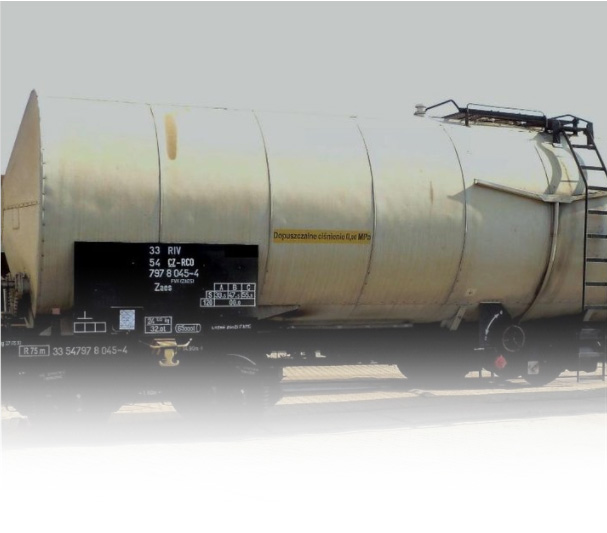

Tank wagon Zaes 65 m³

These tank wagons are intended for the transport of liquid goods not subject to the RID regulation, according to Annex C of the Convention on International Carriage by Rail COTIF, such as methyl ester, edible oils, etc.

Technical parameters
1	row of cars	Zaes
2	car mode	RIV
3	tank code	neRID
4	heating	YES
5	isolation	YES
6	boiler breakage	NE
7	upper manhole	DN 500
8	drain valves	DN 100
9	bed volume	65 m³
10	max. axle weight	20 t
11	car weight	24 t
12	loading weight	56 t
13	length over bumpers	14 900 mm
14	distance between the centers of the pivots	9 860 mm
15	kdistance of external axles	11 660 mm
16	gauge	1 435 mm
17	car width	3 125 mm
18	car height	4 275 mm
19	max speed empty	120 km/h
20	max. speed loaded	100 km/h
21	minimum throughput radius of the arc	150 m
22	chassis type	Y 25 CS
23	pneumatic brake	O - GP
24	brake distributor	Est3fv
25	hand brake	YES
25	wheel diameter	920 mm

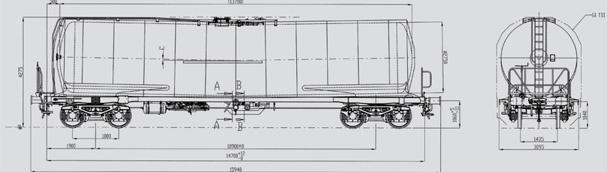

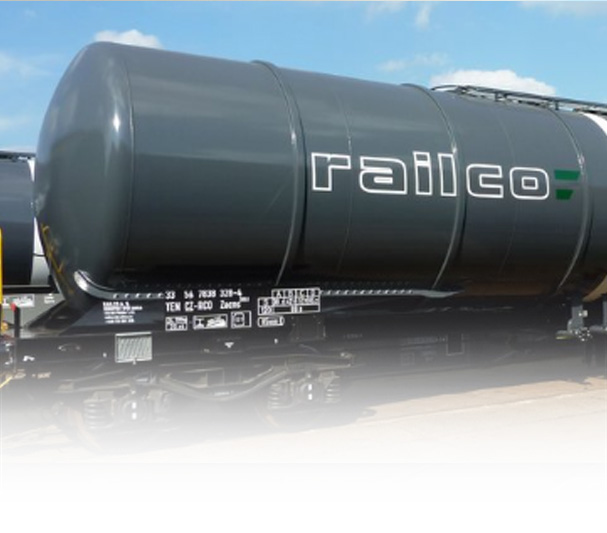

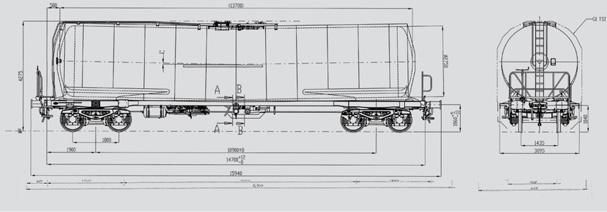

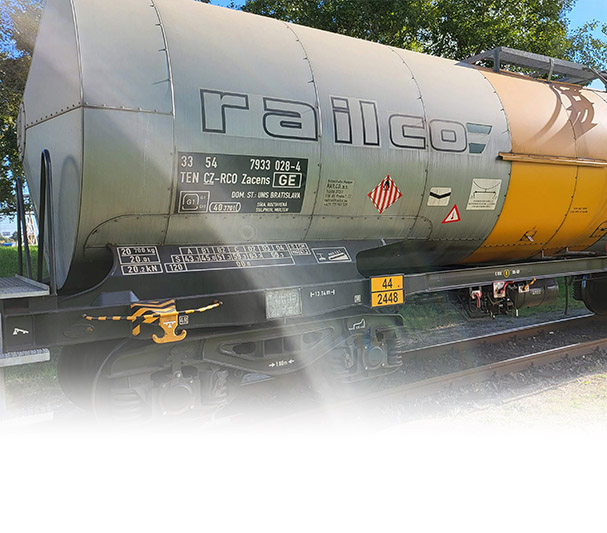

Tank wagon Zacens 40 m³

The Zacens 40 m³ four-axle tank wagon is intended for the transport of dangerous goods according to the RID regulation transported in the liquid state, for which in Table A (Chapter 3.2 of the RID regulation) in column 12 the tank code L4BH and lower is assigned, ie L4BN, L1,5BN, LGBF , LGBV, LGAV. The car complies with the valid regulations according to the European legislation TSI WAG, VSP and UIC.

Technical parameters
1	row of cars	Zacens
2	car mode	TEN
3	tank code	L4BH
4	heating	YES
5	isolation	YES
6	boiler breakage	NE
7	main valve	Krombach
8	upper manhole	DN 500
9	drain valves	DN 100
10	bed volume	78 m³
11	max. axle weight	22,5 t
12	car weight	24 t
13	loading weight	66 t
14	length over bumpers	15 940 mm
14	distance between the centers of the pivots	10 900 mm
15	distance of external axles	12 700 mm
16	gauge	1 435 mm
17	car width	3 095 mm
18	car height	4 275 mm
19	max speed empty	120 km/h
20	max. speed loaded	100 km/h
21	minimum throughput radius of the arc	150 m
22	chassis type	Y 25 Lsd
23	pneumatic brake	DK - GP
24	brake distributor	CV1nD23-GP
25	hand brake	YES
25	wheel diameter	920 mm

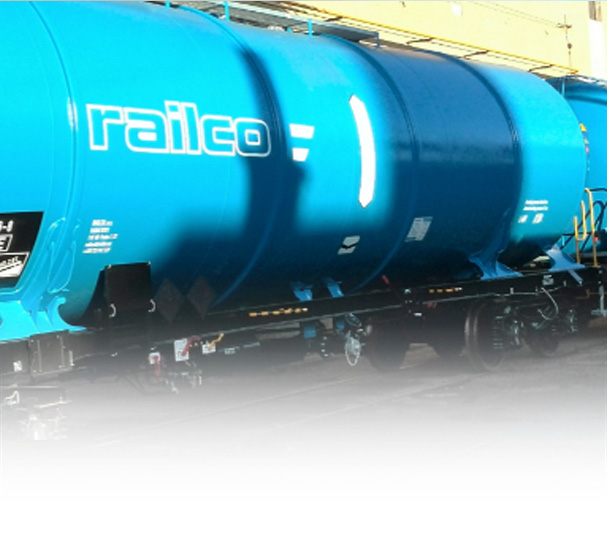

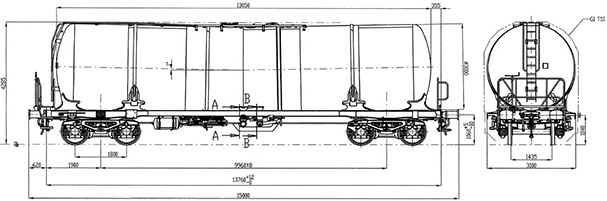

Tank wagon Zacns 88 m³

The four-axle tank wagon with a volume of 88 m³ is intended for the transport of dangerous goods according to the RID regulation transported in the liquid state, for which in Table A (Chapter 3.2 of the RID regulation) in column 12 the tank code L4BH and lower is assigned, ie L4BN, L1,5BN, LGBF, LGBV, LGAV. The car complies with the valid regulations according to the European legislation TSI WAG, VSP and UIC.

Technical parameters
1	row of cars	Zacens
2	car mode	TEN
3	tank code	L4BH
4	heating	NE
5	isolation	NE
5	gaspendel	YES
6	boiler breakage	YES
7	main valve	Perolo
8	upper manhole	DN 500
10	bed volume	88 m³
11	max. axle weight	22,5 t
12	car weight	20,8 t
13	loading weight	69,2 t
14	length over bumpers	15 000 mm
14	distance between the centers of the pivots	9 960 mm
15	distance of external axles	11 760 mm
16	gauge	1 435 mm
17	car width	3 100 mm
18	car height	4 290 mm
19	max speed empty	120 km/h
20	max. speed loaded	100 km/h
21	minimum throughput radius of the arc	150 m
22	chassis type	Y 25 Lsd
23	pneumatic brake	DK - GP
24	brake distributor	DK-CV1nD23
25	hand brake	YES
25	wheel diameter	920 mm

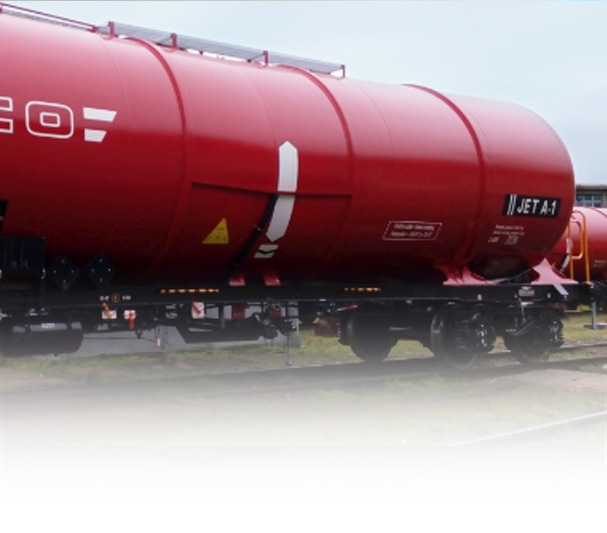

Tank wagon Zacns 88 m³ JET A-1

The four-axle tank wagon with a volume of 88 m³ is intended for the transport of dangerous goods according to the RID regulation transported in the liquid state, for which in Table A (Chapter 3.2 of the RID regulation) in column 12 the tank code L4BH and lower is assigned, ie L4BN, L1,5BN, LGBF, LGBV, LGAV. This type of car was specifically designed to transport fuel to jet engines and is therefore marked JET A-1. The car complies with the valid regulations according to the European legislation TSI WAG, VSP and UIC.

Technical parameters
1	row of cars	Zacns
2	car mode	TEN
3	tank code	L4BH
4	heating	NE
5	isolation	NE
5	gaspendel	YES
6	boiler breakage	YES
6	interior coating	YES (epoxid - Hempadur)
7	main valve	Fort Vale / Krombach
8	upper manhole	DN 500
8	drain valves	DN 100 Fort Vale
10	bed volume	88 m³
11	max. axle weight	22,5 t
12	car weight	20,8 t
13	loading weight	69,2 t
14	length over bumpers	15 000 mm
14	distance between the centers of the pivots	9 960 mm
15	distance of external axles	11 760 mm
16	gauge	1 435 mm
17	car width	3 100 mm
18	car height	4 290 mm
19	max speed empty	120 km/h
20	max. speed loaded	100 km/h
21	minimum throughput radius of the arc	150 m
22	chassis type	Y 25 Lsd
23	pneumatic brake	KE - GP
24	brake distributor	KE2dvSL/D
25	hand brake	YES
25	wheel diameter	920 mm

Tank wagon Zacns 95 m³

The vehicle is intended for the transport of dangerous goods according to the RID regulation transported in the liquid state, for which in Table A (chapter 3.2 of the RID regulation) in column 12 the tank code L4BH and lower is assigned, ie L4BN, L1,5BN, LGBF, LGBV, LGAV. The car complies with the valid regulations according to the European legislation TSI WAG, VSP and UIC.

Technical parameters
1	row of cars	Zacns
2	car mode	TEN
3	tank code	L4BH
4	heating	NE
5	isolation	NE
5	gaspendel	YES
6	boiler breakage	YES
6	interior coating	YES (epoxid - Hempadur)
7	main valve	Krombach
8	upper manhole	DN 500
8	drain valves	DN 100 Fort
10	bed volume	95 m³
11	max. axle weight	22,5 t
12	car weight	24,4 t
13	loading weight	65,6 t
14	length over bumpers	16 500 mm
14	distance between the centers of the pivots	11 460 mm
15	distance of external axles	13 260 mm
16	gauge	1 435 mm
17	car width	3 125 mm
18	car height	4 290 mm
19	max speed empty	120 km/h
20	max. speed loaded	100 km/h
21	minimum throughput radius of the arc	150 m
22	chassis type	KE2dvSL/D
23	pneumatic brake	DK - GP
24	brake distributor	KE2dvSL/D
25	hand brake	YES
25	wheel diameter	920 mm

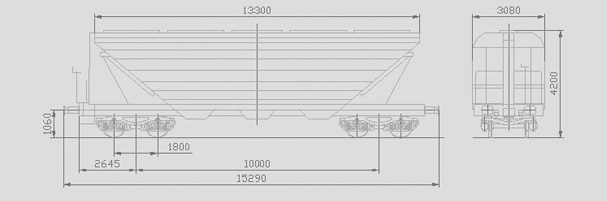

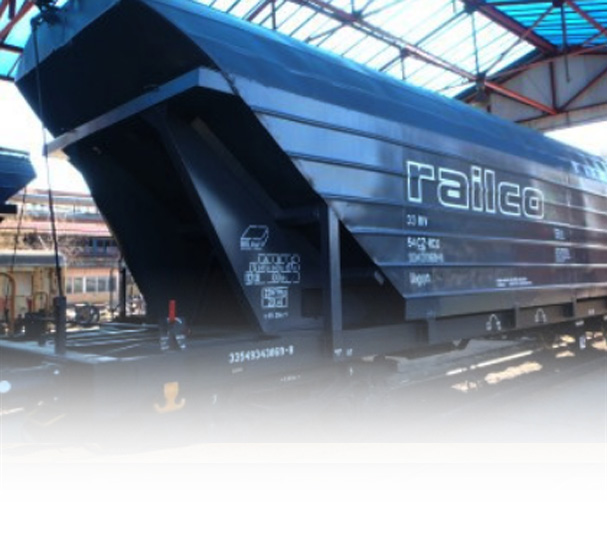

Hopper wagon Uagpps 85 m³

The Uagpps dump truck is suitable for the transport of bulk materials such as cereals or pomace. The cars are loaded and unloaded by gravity, under the weight of the load.

Technical parameters
1	row of cars	Uagpps
2	car mode	RIV
3	bed volume	85 m³
4	max. axle weight	20 t
5	car weight	23 t
5	loading weight	57 t
6	length over bumpers	15 290 mm
6	distance between the centers of the pivots	10 000 mm
7	distance of external axles	11 800 mm
8	gauge	1 435 mm
8	car width	3 080 mm
10	car height	4 200 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25 Cs
14	pneumatic brake	KE - GP
15	brake distributor	KE1adSL
16	hand brake	YES
17	loading openings	5 x roof cover (2 200 x 510 mm)
18	dump control	handly
19	wheel diameter	920 mm

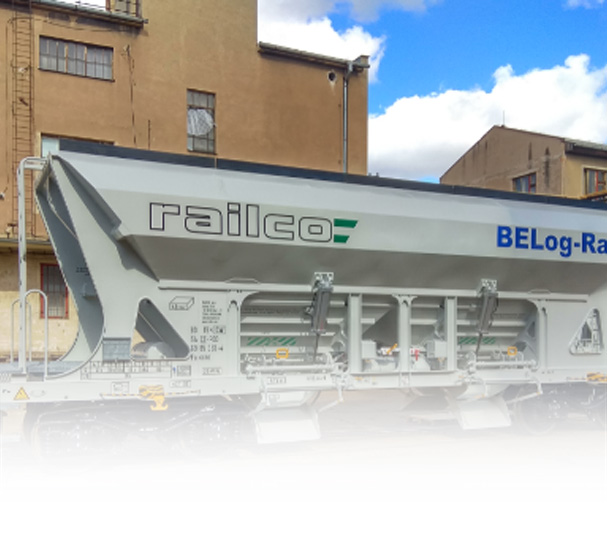

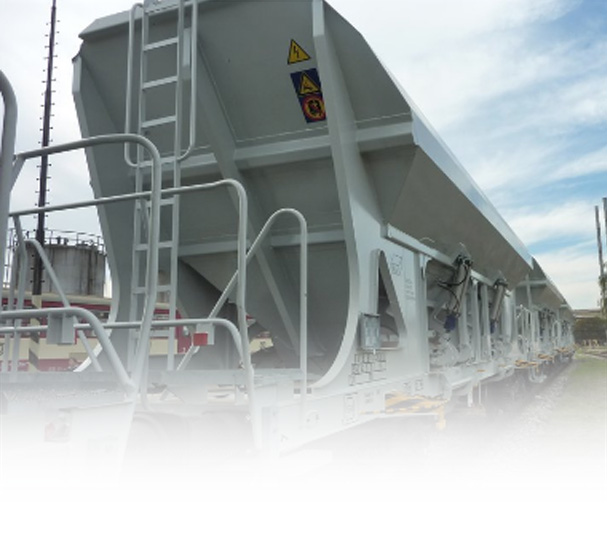

Hopper wagon Faccnpps 48 m³

The Faccnpps dump truck is used for the transport of bulk materials (aggregates, gravel, sand). The cars are loaded and unloaded by gravity, under the weight of the load. The direction of the dump can be set to the center and to the sides of the car.

Technical parameters
1	row of cars	Faccppns
2	car mode	TEN
3	bed volume	48 m³
4	max. axle weight	22,5 t
5	car weight	21,3 t
5	loading weight	68,7 t
6	length over bumpers	12 680 mm
6	distance between the centers of the pivots	7 880 mm
7	distance of external axles	9 680 mm
8	gauge	1 435 mm
8	car width	3 125 mm
10	car height	4 098 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25 Lsi(f)-K
14	pneumatic brake	KE - GP
15	brake distributor	KE2DVSL
16	hand brake	YES
17	loading openings	10 386 x 1 600 mm
18	dump control	pneumatic / handly
19	wheel diameter	920 mm

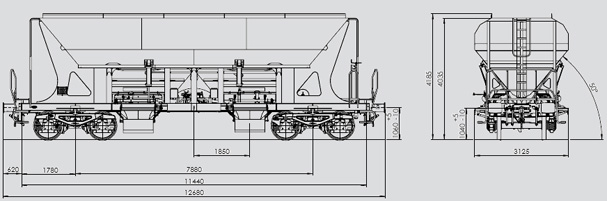

Hopper wagon Faccns 49 m³

The Faccns dump truck is used for the transport of bulk materials (aggregates, gravel, sand). The cars are loaded and unloaded by gravity, under the weight of the load. Dump control is possible both from the side of the car and from the platform.

Technical parameters
1	row of cars	Faccns
2	car mode	TEN
3	bed volume	49 m³
4	max. axle weight	22,5 t
5	car weight	21,5 t
5	loading weight	68,5 t
6	length over bumpers	12 680 mm
6	distance between the centers of the pivots	7 880 mm
7	distance of external axles	9 680 mm
8	gauge	1 435 mm
8	car width	3 125 mm
10	car height	4 185 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25 Lsi(f)-C
14	pneumatic brake	KE - GP
15	brake distributor	KE2DVSL
16	hand brake	YES
17	loading openings	10 252 x 2 000 mm
18	dump control	pneumatic / handly
19	wheel diameter	920 mm

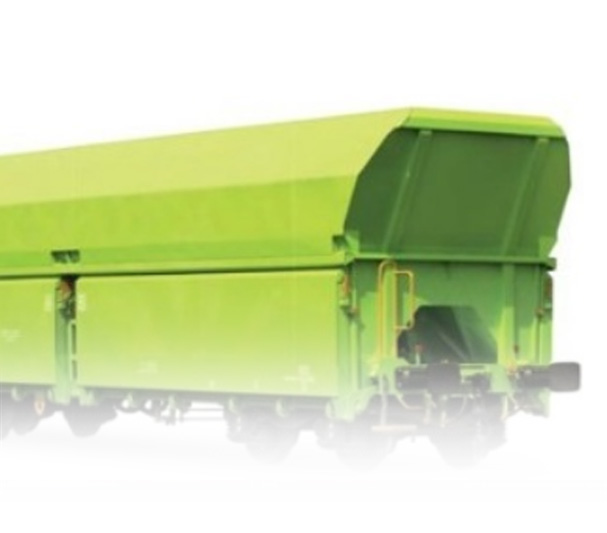

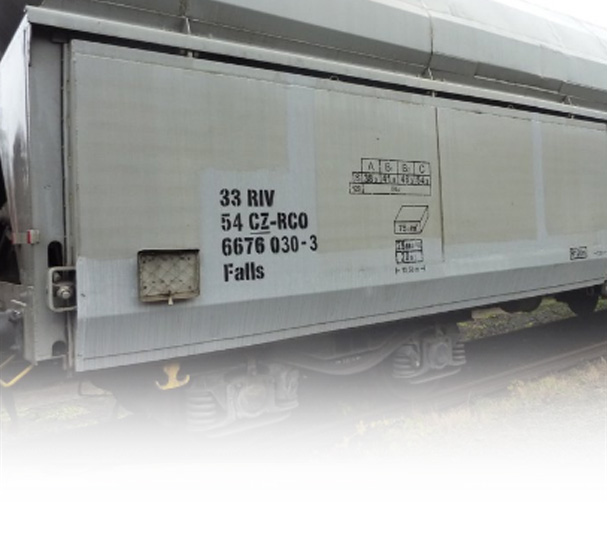

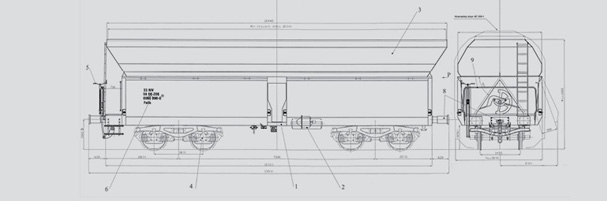

Hopper wagon Falls 75 m³

The Falls dump truck is used to transport bulk materials, such as coal or coke. The cars are loaded and unloaded by gravity, under the weight of the load.

Technical parameters
1	row of cars	Falls
2	car mode	RIV
3	bed volume	75 m³
4	max. axle weight	20 t
5	car weight	27 t
5	loading weight	53 t
6	length over bumpers	13 500 mm
6	distance between the centers of the pivots	7 200 mm
7	distance of external axles	9 000 mm
8	gauge	1 435 mm
8	car width	3 090 mm
10	car height	4 000 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25 Cs
14	pneumatic brake	DK - GP
15	brake distributor	CV1D16
16	hand brake	YES
17	loading openings	12 240 x 1 748 mm
18	dump control	pneumatic / handly
19	wheel diameter	920 mm

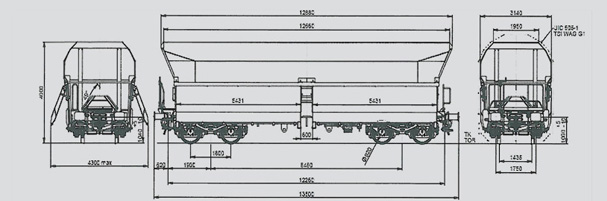

Hopper wagon Falns 85 m³

A four-axle chassis truck with a volume of 85 m2 designed for the transport of durable materials such as coal, coke, gravel or sand. The cars are loaded and unloaded by gravity, under the weight of the load.

Technical parameters
1	row of cars	Falns
2	car mode	TEN
3	bed volume	85 m³
4	max. axle weight	22,5 t
5	car weight	25 t
5	loading weight	65 t
6	length over bumpers	13 500 mm
6	distance between the centers of the pivots	8 460 mm
7	distance of external axles	10 260 mm
8	gauge	1 435 mm
8	car width	3 140 mm
10	car height	4 000 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25
14	pneumatic brake	DK - GP
15	brake distributor	CV1nD16
16	hand brake	YES
17	loading openings	12 660 x 1 950 mm
18	dump control	pneumatic / handly
19	wheel diameter	920 mm

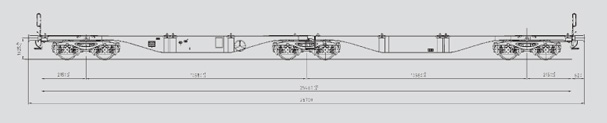

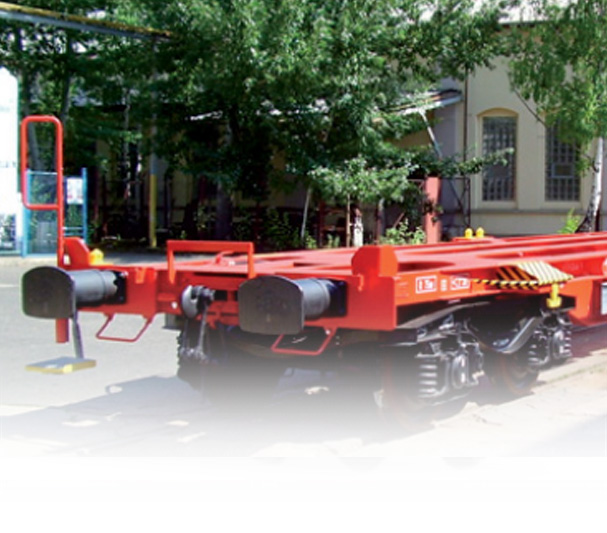

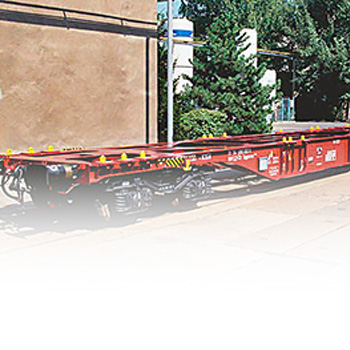

Sggrss 80′ Series Articulated Platform Wagon

The Sggrss container truck with three two-axle chassis type Y 25 Lsd1 is designed for the transport of 20 ′ and 40 ′ containers. The car consists of two separate support members A, B of similar design connected by a UIC / ERRI type joint. There are a total of 8 folding securing elements (pins) on the car frame. Depending on the type of load, only those securing elements that correspond to the dimensions of the corner elements of the container remain in the working position during loading. The cars are easy to maintain, favorable for care and operation. All parts to be maintained are easily accessible and parts relevant to the assessment of safe operation (eg travel, brake, drawbar and impactor, etc.) are easily visible. Articulated wagons are designed according to the principles of UIC 572 and also comply with TSI, UIC, RIV, TJ.

Technical parameters
1	row of cars	Sggrss
2	car mode	TEN
4	max. axle weight	22,5 t
5	car weight	27 t
5	loading weight	108 t
6	length over bumpers	26 700 mm
6	distance between the centers of the pivots	2 x 10 580 mm
8	gauge	1 435 mm
8	car width	2 970 mm
10	car height	4 000 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	175 m
14	chassis type	Y 25
14	pneumatic brake	DK - GP
15	loading length	2 x 12 375 mm
16	loading width	2 438 mm
17	height of the loading floor from tk	1 155 mm
18	wheel diameterk	920 mm

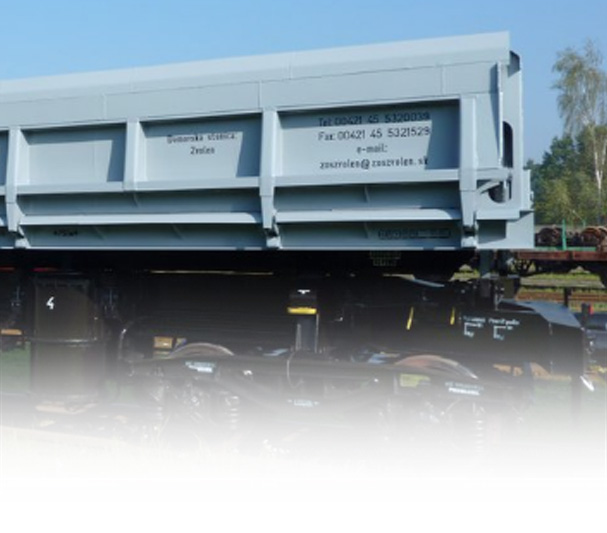

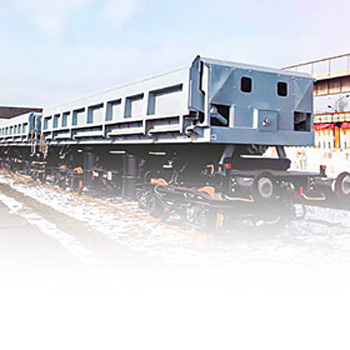

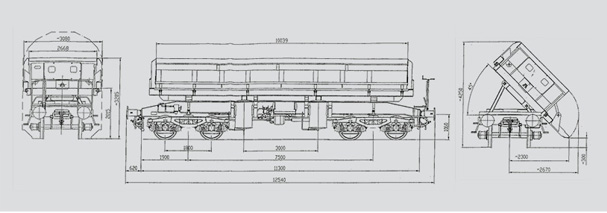

Tipping wagon Fas (Uas)

This railway truck is designed for the transport of bulk materials (sand, gravel, aggregates).

Technical parameters
1	row of cars	Fas (Uas)
2	car mode	RIV
4	loading volume	31 m³
4	max. axle weight	20 t
5	car weight	27 t
5	loading weight	53 t
6	length over bumpers	12 540 mm
6	distance between the centers of the pivots	7 500 mm
6	distance of external axles	9 300 mm
8	gauge	1 435 mm
8	car width	3 080 mm
10	car height	3 205 mm
11	max speed empty	100 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25 CS
14	pneumatic brake	O - GP
14	brake distributor	Est3fv
14	hand brake	YES
15	loading length	2 x 12 375 mm
15	loading openings	10 039 x 2 668 mm
15	dump control	pneumatic
16	loading length	10 039 mm
16	loading width	2 668 mm
16	loading height	1 190 mm
17	height of the loading floor from tk	2 015 mm
17	usable floor area	25 m²
18	wheel diameterk	920 mm

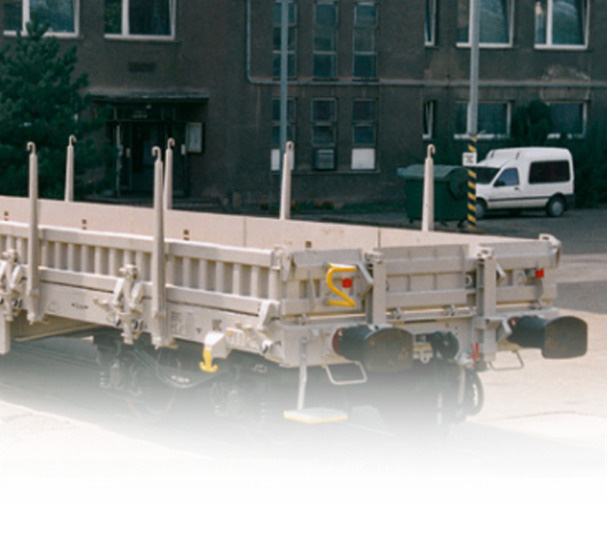

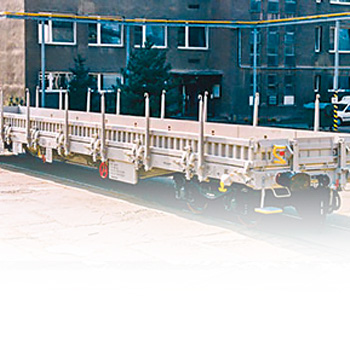

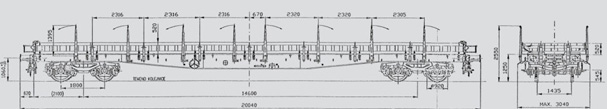

Platform wagon Res

The platform truck of this series is intended for the transport of bulky piece consignments, long loads, road wagons and products of the metallurgical, mechanical and construction industries.

Technical parameters
1	row of cars	Res
2	car mode	RIV
4	max. axle weight	20 t
5	car weight	26 t
5	loading weight	54 t
6	length over bumpers	20 040 mm
6	distance between the centers of the pivots	14 600 mm
6	distance of external axles	16 40 mm
8	gauge	1 435 mm
8	car width	2 880 mm
10	car height	2 550 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25 Lsd1
14	pneumatic brake	DK - GP
14	brake distributor	CV1D14
14	hand brake	YES
15	loading length	18 680 mm
15	loading width	2 710 mm
17	height of the loading floor from tk	1 250 mm
17	floor type	dřevěná
17	usable floor area	50,6 m²
18	wheel diameterk	920 mm

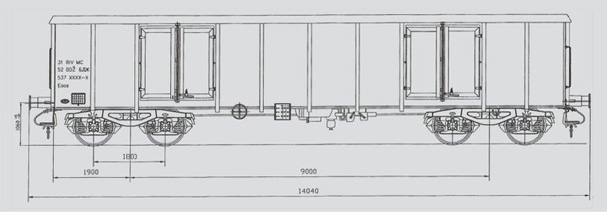

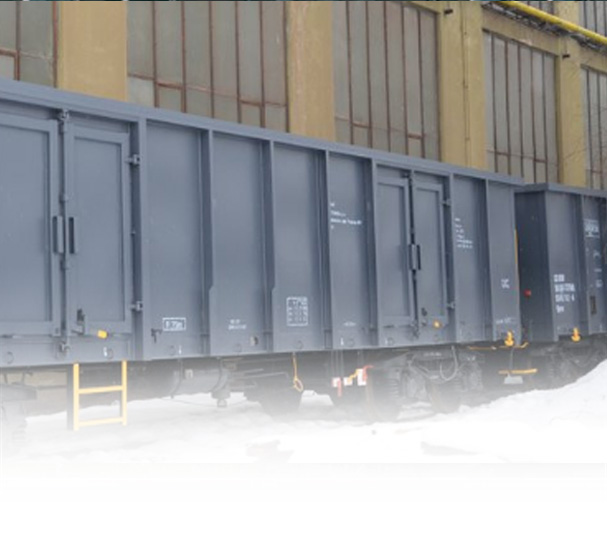

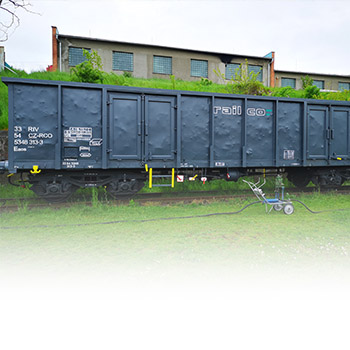

Box wagon Eaos

Four-axle open wagons of the Eas, Eaos, EYESs type are suitable for the transport of bulk materials (eg coal, iron ore, gravel, stones) and piece goods.

Technical parameters
1	row of cars	Eaos
2	car mode	RIV
2	loading volume	72 m³
4	max. axle weight	20 t
5	car weight	22 t
5	loading weight	58 t
6	length over bumpers	14 040 mm
6	distance between the centers of the pivots	9 000 mm
6	distance of external axles	10 800 mm
8	gauge	1 435 mm
10	car height	3 250 mm
11	max speed empty	120 km/h
12	max. speed loaded	100 km/h
13	minimum throughput radius of the arc	150 m
14	chassis type	Y 25 Cs
14	pneumatic brake	KE - GP
14	brake distributor	KE1asL
14	hand brake	YES
15	loading openings	2x boční (1 800 x 1 800 mm)
15	loading width	2 770 mm
17	loading length	12 790 mm
18	wheel diameter	920 mm

Range of railways

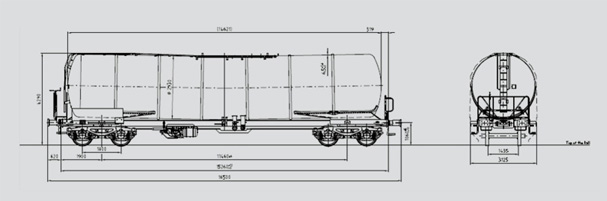

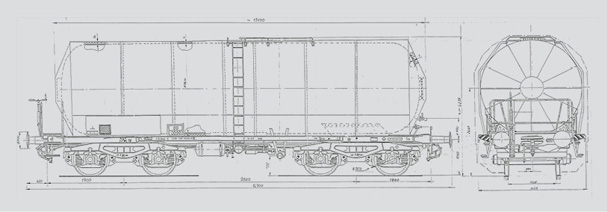

Tank wagon

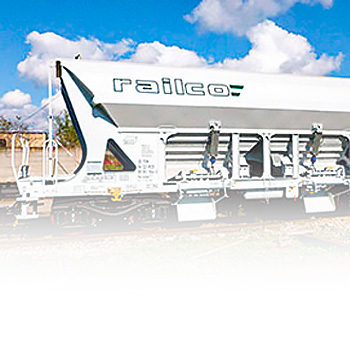

Hopper wagon

Platform wagon

Tipping wagon

Platform wagon RENS(S) series

Box wagon

Do not hesitate to contact us
